Hammer Test Digital SADT HT 225D
Product Description
Concrete Test Hammer HT225D Digita rebound test hammer Introduction

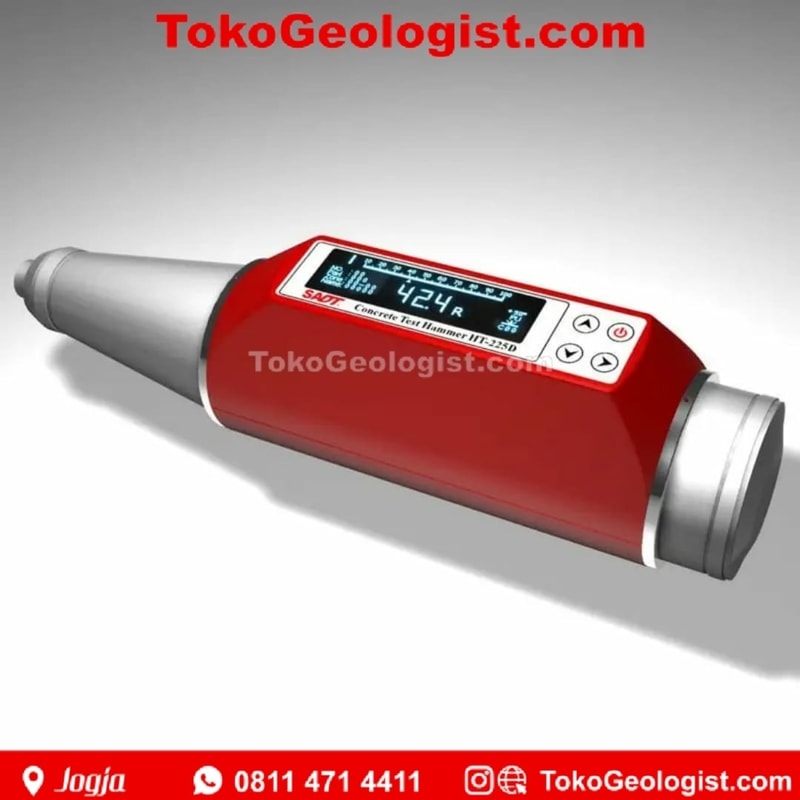

HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
Key features :
- High contrast OLED display
- All setup can be made on site
- Automatic calculating compressive strength
- Automatic correction of impact direction
- All data will be stored in memory
- All data can be transferred to PC by USB cable or blue tooth(optional)
- Dual display for analogue ruler and digital value
Spesifikasi :
- Type: Digital Only
- Display: OLED digital
- Measuring range: 10-100N/mm2
- Accuracy: ±0.1R
- Impact energy: 0.225kgm (2.207Nm)
- Application: for testing ordinary building and bridge construction
- Communication: USB2.0 or Bluetooth(optional)
- Printing: Bluetooth micro printer (optional)
- Storage: 1000 parts, 256 data for each part
- Operating temperature: -40º-60ºC
- Power supply: 3.7V Li-ion rechargeable battery charged via USB port
- Dimension (mm): 280x75x60
- Net weight: 1.1kg
- Standards: ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993

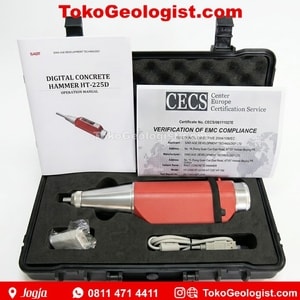

Standard package :
- HT-225D main unit (1)
- Grinding wheel (1)
- USB cable (1)
- USB charger (1)
- Software CD (1)
- Operation manual (1)
- Carrying case (1)
