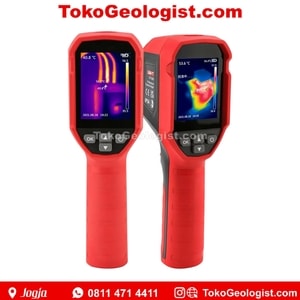

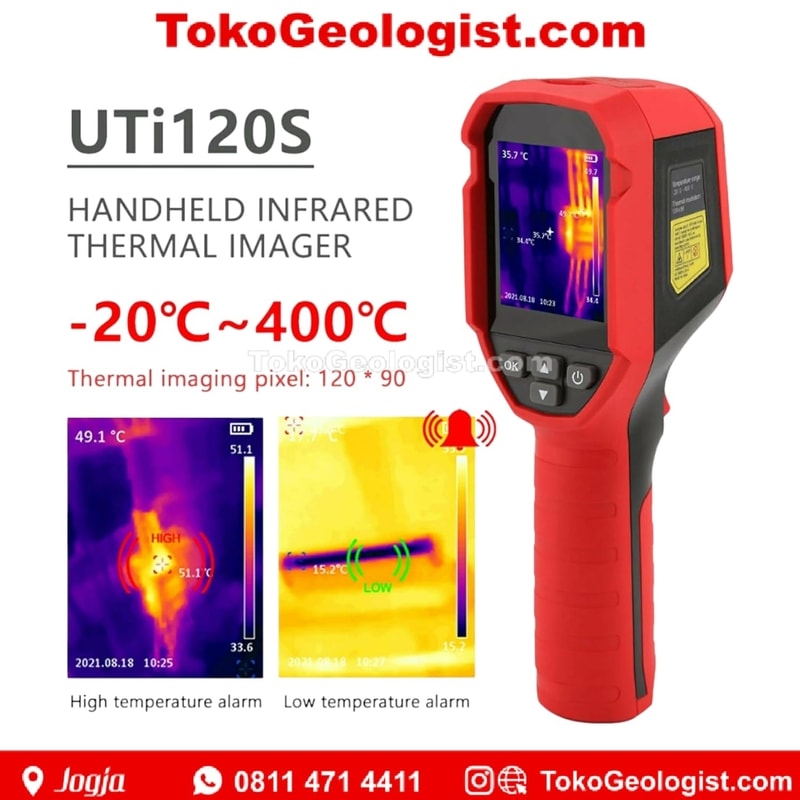

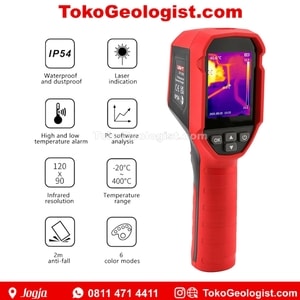

Compact Handheld Infrared Camera

• Measures a wide temperature range from -20°C to 400°C, covering diverse maintenance applications
• Features a 120 × 90 IR pixel sensor with <60mK sensitivity for clear thermal detection
• Offers real-time tracking of center point, high, and low temperatures for quick anomaly detection
• Includes seven color palettes (e.g., Iron Red, Rainbow, White Hot) for flexible image analysis
• Provides a fast response time of <500ms for quick and accurate fault identification
• Equipped with a Type-C USB port and PC analysis software for exporting and evaluating thermal images
• Features a rugged IP54 rating for dust and splash resistance, ensuring reliability in tough conditions
• Delivers over 9 hours of continuous usage with a fast-charging rechargeable battery

Technical Specifications

• Infrared Resolution 120 × 90 pixels (10,800)
• Temperature Range -20°C to 400°C
• Thermal Sensitivity (NETD) <60mK
• Frame Rate <25Hz
• Display 2.4-inch TFT LCD (320 × 240)
• Emissivity Adjustable from 0.01 to 0.99
• Data Storage 16GB TF card
• Data Communication Type-C USB for PC software connection
• Battery Life >9 hours of continuous use
• Charging Time <2.5 hours

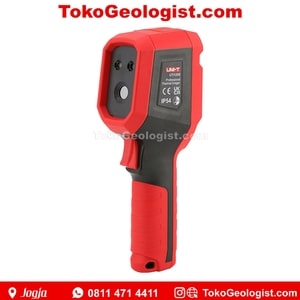

• Protection Rating IP54
• Dimensions 197 × 72 × 60 mm

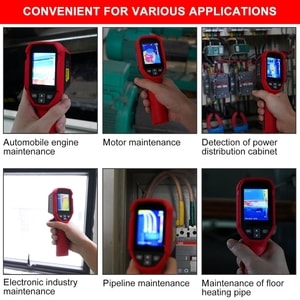

Applications

• Detects overheating wires, fuses, and circuit faults in electrical maintenance
• Identifies heat leaks, insulation issues, and air duct problems in HVAC & building inspection
• Tracks machine performance and prevents overheating in industrial equipment monitoring
• Pinpoints engine, exhaust, and mechanical issues for automotive diagnostics

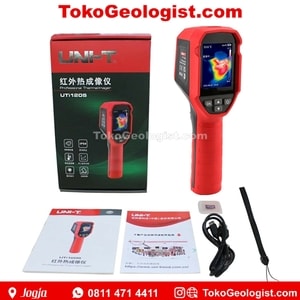

Package Includes

• 1 x UNI-T UTi120S Infrared Thermal Imager
• 1 x Type-C USB Cable
• 1 x 16GB TF Card
• 1 x User Manual
